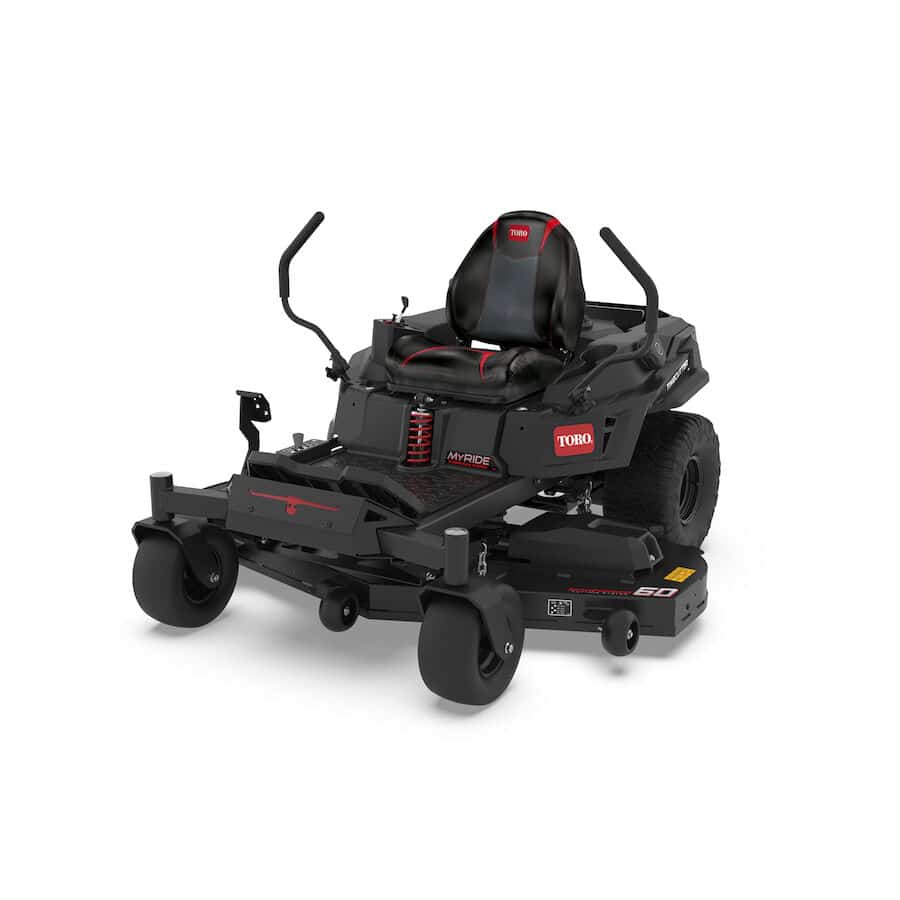

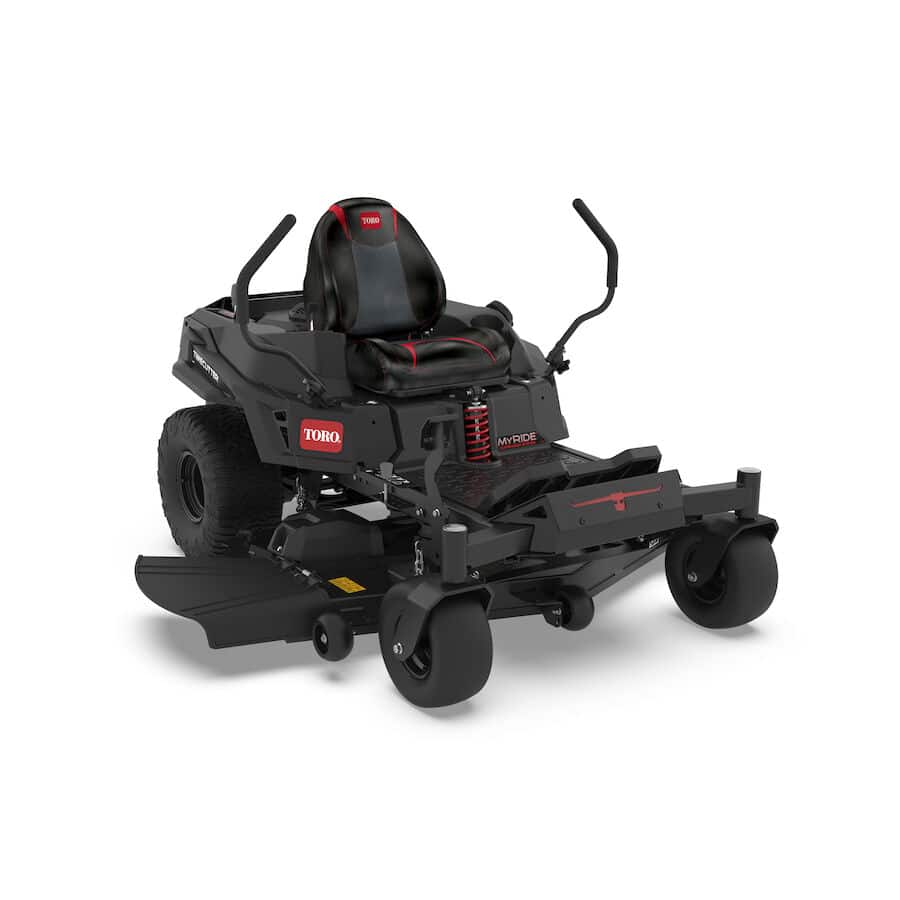

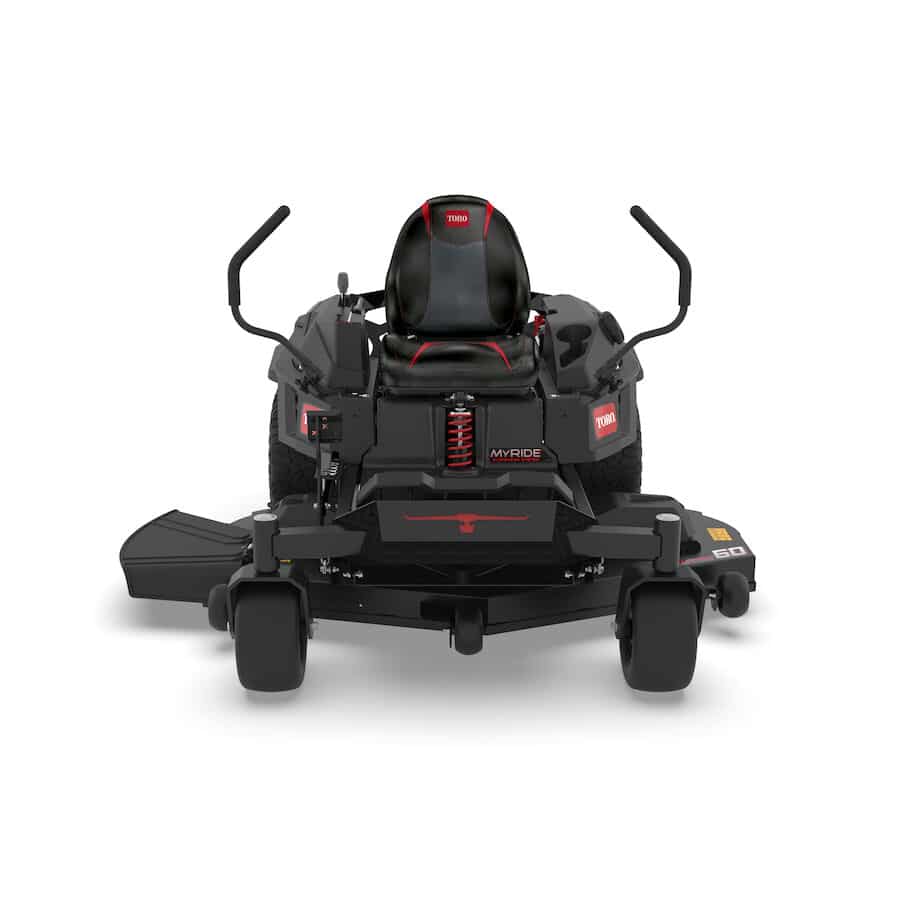

Toro 60 in. (152 cm) TimeCutter® MyRIDE Max Zero Turn Mower (77602)

Contact us for price

Stock status: Call Store for Availability

  • Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
  • Over 100 years of Pro DNA course through the veins of every mower we build.
  • Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
  • The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • Aggressive paint job that says you don’t keep up with the Jones’, you are the Jones’.
  • Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more
Call Us Now

Specs

Air Filter Kohler Standard Air Cleaner
Anti Scalp Wheels 3 Standard
Armrests Optional
Bagger Capacity 4.9 bushels
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Box Dimensions 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
Clutch Electromagnetic
Comfort Platform MyRIDE® Suspension System
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutter System Steel Cutting Blade
Deck Design 10-Gauge steel IrongForged®
Deck Material 10 Gauge Steel
Deck Size 60 in / 152 cm
Discharge Chute Side
Drive System Hydrostatic
Drive Tires 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
Drive Type Rear-Wheel Drive
Engine 24 HP Kohler KT735 725cc
Engine Brand Kohler
Engine Displacement (cc) 725 cc
Engine Horsepower 24.0 hp
Engine Power (kW) 17.9 kW
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Forward Mowing Speed Up to 7.0 mph / 11.2 kph
Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Height of Cut 1.0 - 5.0 in. / 2.5 - 12.7 cm
Hitch Bracket Standard
Hour Meter Standard
Hydraulic Drive Standard
Lighting Optional
Number of Blades 3
Product Type TimeCutter Max MyRide
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection (ROPS) Optional
Seat 19" Gaming Style
Spindle Bearings Maintenance-free
Spindle Housing Cast-Aluminum
Start Type Electric
Steering Controls Twin Lever
Steering Dampeners Standard Dampers
Terrain Type Flat with Obstacles
Tires 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
Transmission Dual Hydrostatic HG-ZT2800
Washout Port Standard
Weight 702 lbs / 318.4 kg
